Technical Parameters
|
Power Supply |
AC220V/110V±10V 50/60HZ |
|
Motor speed |
1350rpm 1620rpm |
|
Operating Temperature |
-40°C~+55°C |
|
Relative Humidity |
≤90%, No Condensation |
|
Rated output power of motor |
350W |
|
Remote control operating distance |
Max 50m (Frequency:418MHz) |
|
Remote control mode |
Single button |
|
Max gate weight |
1800Kg |
|
Output torque |
35Nm |
|
Limit switch |
Spring limit switch |
|
Noise |
≤58dB |
|
Duty cycle |
S2, 15 minutes |
|
extra remote control |
20 pcs |
|
Gate move speed |
11m/min,13.2m/min |
|
Application |
home automation |
1.How many sliding gate models do you have ?
——– We have 500KG ,700KG ,1000KG ,1800KG ,2000KG sliding gate motors for you choose.
2.Which accessories do you supply for the Sliding gate opener?

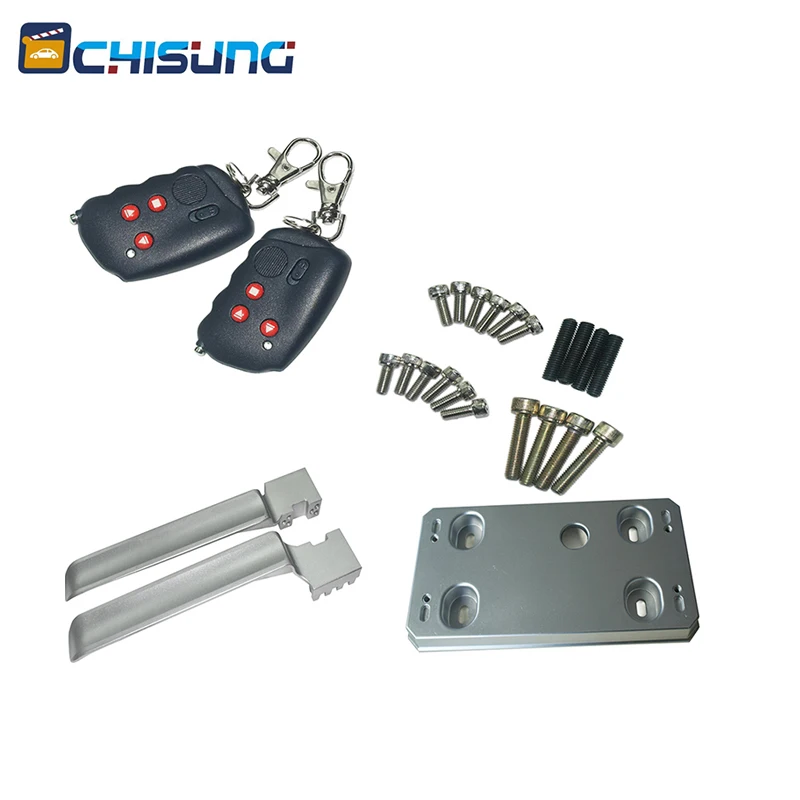

——– Gear rack (Steel and Nylon), Push button, Photocells sensor, Alarm light, GSM Gate Opener, Loop detector, Extra remote controller, Keypad and Solar panel and so on.
3.What is the frequncy of your remote control?
——– CSPY-1800 model is 418Hz, other models are 433Hz.
4.What is your products waterproofing grade?
——– Yes, it is IP54.
5.What’s you warranty?
——– 1 year time warranty.
